Premium Large 2.44-Inch Magnetic Antenna Base (SMA Jack / SMA Plug) for 3G / 4G / LTE Cellular, Ham, ADS-B, GPS Antennas
$18.95

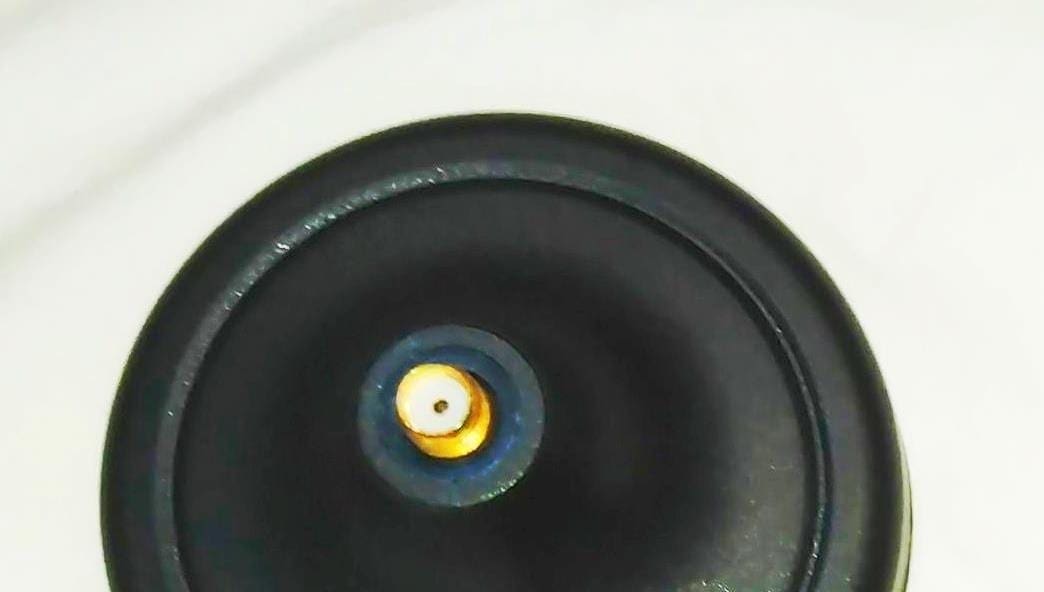

Premium Large 2.44-Inch Magnetic Antenna Base

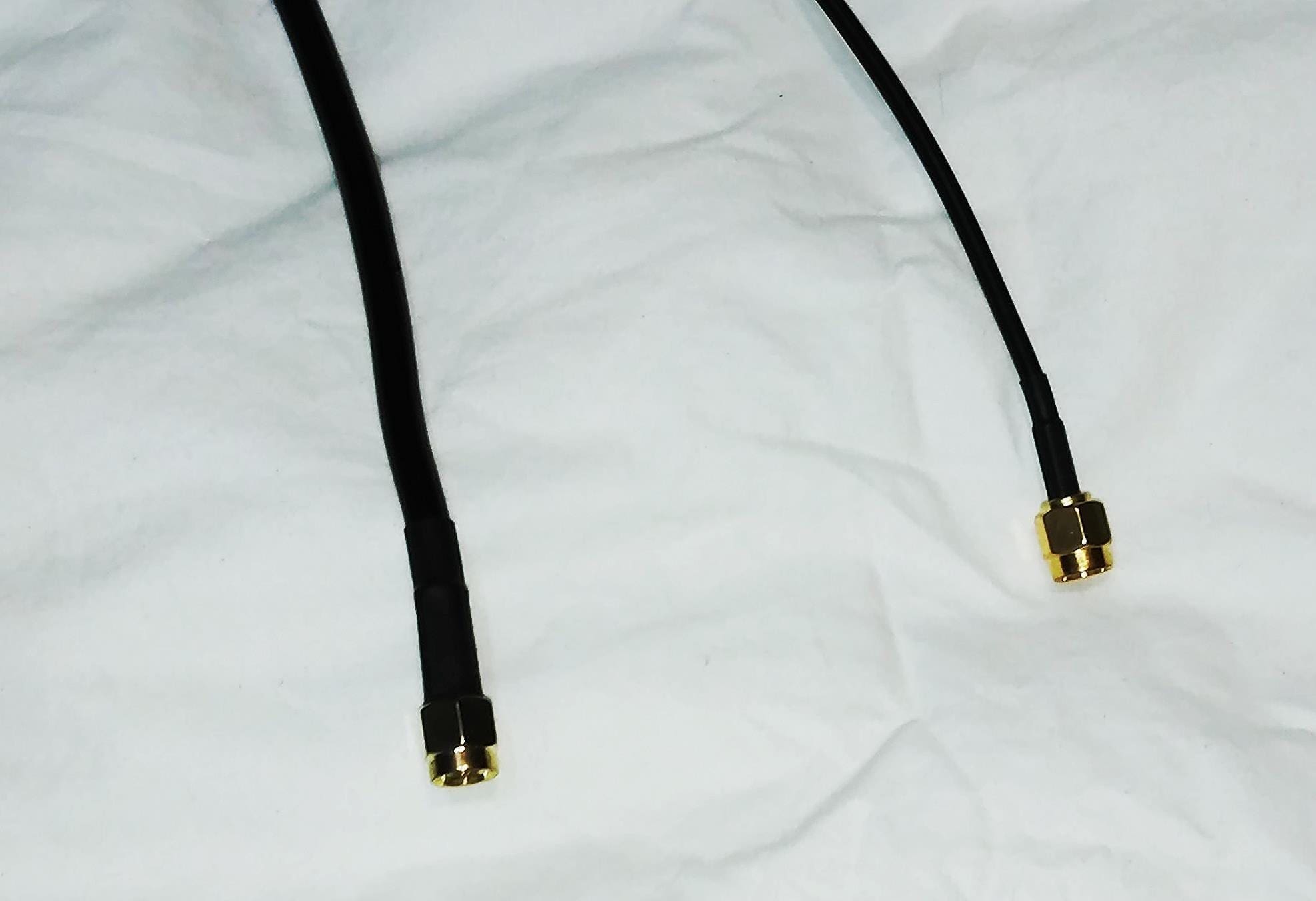

*See pictures comparing our Low Loss Cable to their High Loss Cable and our Gold Plated SMA connectors to their Tin Plated SMA connectors*
This magnetic mounting base lets you locate your antenna for the best signal reception without having to move your modem, router, or receiver. The magnetic base provides a non-destructive mounting option for screw-on antennas customarily intended for direct modem or router chassis mounting.
The Premium Magnetic Antenna Base is a large (2.44 inches / 62 mm) diameter magnetic antenna base with a low-loss, HPP200 coax cable (more than 2x less signal loss than a Proxicast) SMA female jack on top. Its strong magnet and durable metal construction make it suitable for mobile vehicle mounting applications, stationary applications, or even desktop use. The large diameter base improves stability and provides a more potent magnetic force. The base includes a rubber cap to protect mounting surfaces.
The base also features a flexible 393.7 inch (6.5 ft /10 meter) low-loss coax cable with an SMA male plug to connect to cellular modems, routers, GPS, HAM, ADS-B, 900 MHz or other radio equipment.
Specifications:
• Top connector: SMA jack (female)
• Lead connector: SMA plug (male)
• Coax: HPP200 low-loss, MAX loss @ 3 GHz 1.86 -dBi
• Length: 393.7 in.
• Diameter: 2.4 in.
• Weight: 15 oz.
Compatible with all SMA-based equipment including modems, routers, and antennas from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion, and many others.
NOT FOR USE WITH Wi-Fi (RP-SMA) ANTENNAS
10 in stock
Description
- Get The Best Signal: Ideal for extending the cable for installing the antenna to the ideal location
- Simple to use: Simply just use it with the RP-SMA Male connector antenna. then increase signal strength, no need any drivers plug and play.
- Compatibility: Ideal for standard RP-SMA Male Antenna( WiFi Router, Mobile Cell Phone Signal Booster, Cellular, HAM, ADS-B, 900 MHz, etc). Can be used as an external antennas’ base with a variety of routers or wireless network cards.
- Strong and Stable: Extra Large 2.36-Inch Diameter Base Provides Secure Mounting. Rubber Cap Protects Surfaces.
- Warranty Service: Technical Support. Please contact us if you have any issues about the wifi antenna Magnetic Stand Base, we will respond to your issue within 24 hours
